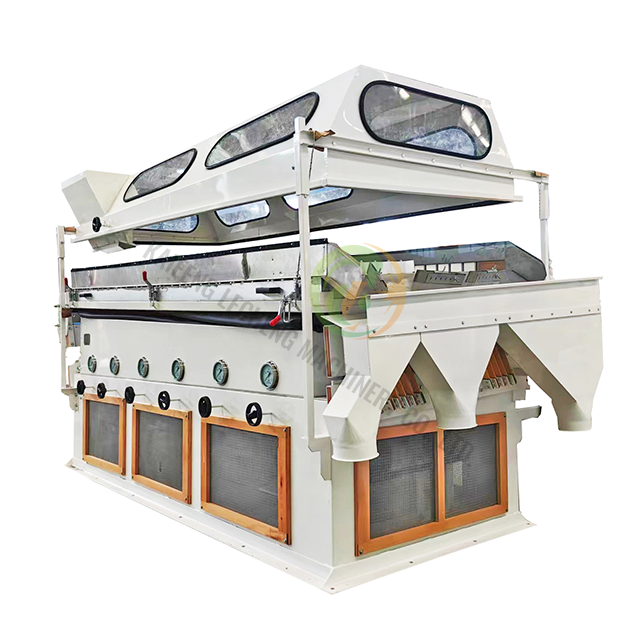

5XZ gravity separator is designed with modular screen deck, uniform air distribution system, precise separation result and long service life. It is an essential equipment in lentils, beans, sesame seeds, sunflower seed etc cleaning lines and professional seed processing plants.
The 5XZ Gravity Separator is an advanced seed cleaning machine designed to separate materials based on specific gravity differences. It effectively removes impurities, immature seeds, and lightweight debris through a combination of vibration and airflow. Ideal for grains, oilseeds, and vegetable seeds, this separator ensures high precision and efficiency while minimizing seed damage. Its adjustable settings allow customization for different seed types and sizes.
1. Heavy duty and robust steel structural frame to absorb the vibrations.
2. Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
3. Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4. Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5. Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6. Safe guards to all moving parts ensure the safe operation.
7. Environmentally friendly with screen dedusting cover, low noise.
Item | Unit | Specification | ||||
Model | 5XZ-3 | 5XZ-5 | 5XZ-10 | 5XZ-15/20 | ||
Dimension(L*W*H) | mm | 2050*1350*1200 | 3840*2110*1710 | 4300*2300*2500 | 5100*2300*2700 | |
Total Weight | kg | 1650 | 1900 | 2150 | 3500 | |
Rated Capacity | t/h | 3.0 | 5.0 | 10.0 | 15~20 | |
Total Power | kW | 7.45 | 9.55 | 14.7 | 30.3 | |
Amplitude | mm | 7 | 7 | 7 | 7 | |
Dip Angle | ° | 30 | 30 | 30 | 30 | |
Frequency | 1/s | 300~800 | 300~800 | 300~800 | 300~800 | |
Screen Area | m2 | 2.24 | 3.4 | 5.36 | 8.42 | |
Selection Efficiency | % | ≥98.5 | ≥98.5 | ≥98.5 | ≥98.5 | |
Cleaning Efficiency | Light | % | ≥99 | ≥99 | ≥99 | ≥99 |
Heavy | % | ≥95 | ≥95 | ≥95 | ≥95 |
