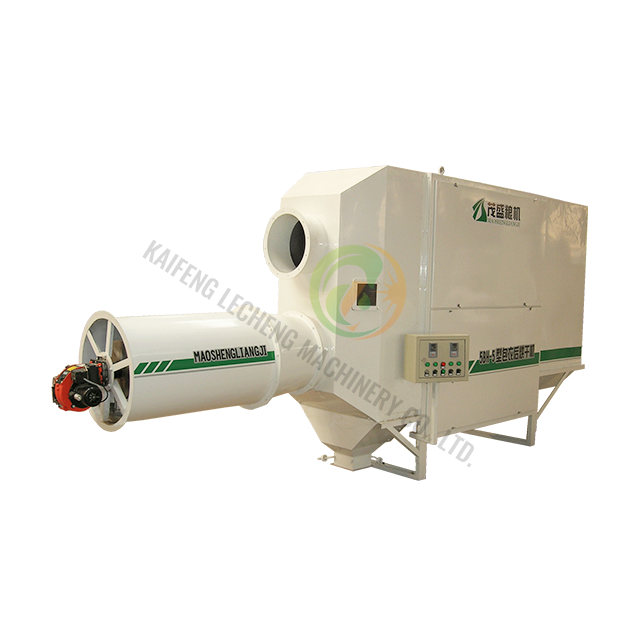

5BH-5 Seed Dryer is especially applicable for drying seeds after coating and pelleting to effectively improve the speed of dressing agent film build and consolidation, reduce seeds adhesion and caking, enable the coated pelleted seeds to be weighed, packaged and stored quickly.
The 5BH-5 Seed Dryer is a specialized piece of equipment mainly used for drying seeds, and in the context of coffee bean processing, it can play an important role. This dryer is designed to efficiently reduce the moisture content of coffee beans to an appropriate level. It features a well-engineered structure that allows for even distribution of hot air, ensuring that all the beans are dried uniformly. The controlled drying environment helps to preserve the quality and integrity of the coffee beans, preventing issues such as mold growth or uneven roasting later on. With its reliable performance and adjustable drying parameters, the 5BH-5 Seed Dryer can handle a certain capacity of coffee beans at a time, making it suitable for both small-scale and medium-sized coffee processing operations.
Corrosion-resistant galvanized steel
Intelligent PLC control system
Reverse airflow design
Easy-clean interior
Safety overheating protection
Seed company processing centers
Grain storage facilities
Hybrid seed production
Organic seed drying
1. Electrothermal drying method.
2. High automation system, easy to operate and control temperature.
3. Drying time is controlled by the frequency converter, usually about 1-3 minutes.
4. Dip angle of drum is adjustable to meet the requirement of different seeds, humidities and production rates.
5. Air flow control valve at air outlet can adjust hot air volume according to seed apecific weight, humidity and production rate.
6. Only dry the surface of coated seeds, no harm to the germination rate.
7. All materials contacted with the wet seed are corrosion-resistant stainless steel, safe and durable.
8. Built-in electric heating rods can be opened completely or party to maximize the efficiency and save energy.
9. Enclosed structure of machine, nocuous hot wet air is vented outdoors.
Model | Rated Capacity | Overall Dimension(L*W*H) | Total Weight | Motor Power(kW) | Dehydration Rate | Dip Angle of Drum | ||
Fan Motor | Electric Rod | Gear Motor | ||||||
5BH-5 | 5t/h | 4700*965*2260mm | 800kg | 0.55*2 | 2*21 | 0.55*2 | ≥1.0% | 2°~5° |
